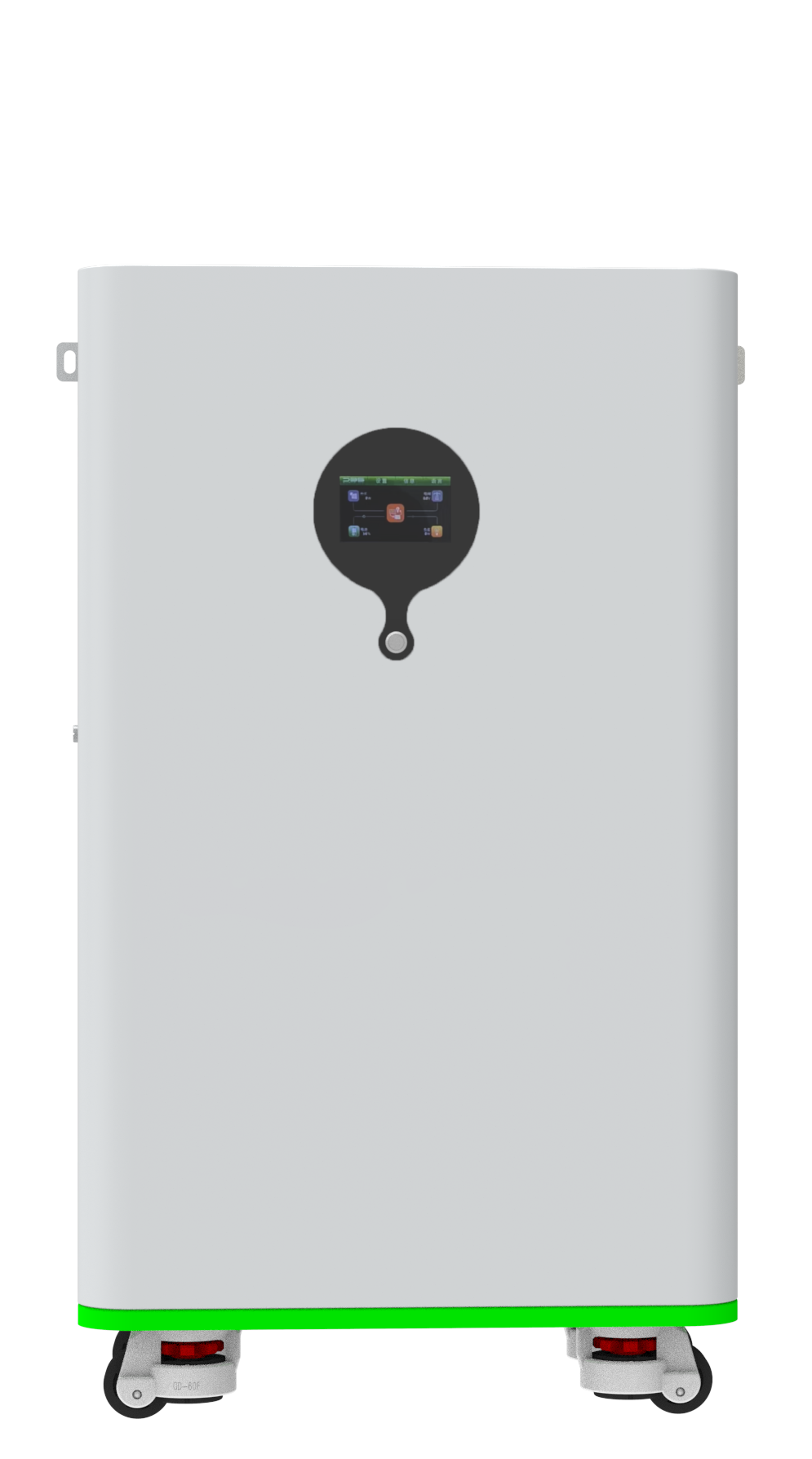

ALL IN ONE

Long-term residential energy storage system

8000Wh



Features:

1、ALL IN ONE design:Highly integrated energy storage inverter, photovoltaic inverter, energy storage battery and energy management system in one unit.

2、Industrial-grade High Capacity and Long-life LiFePO4 Battery Cells: Battery cells with a cycle life exceeding 11,000 cycles.

3、Long-term Cost-effective Design: Capable of providing household electricity for more than 5 days when fully charged (*).

4、Supports High-power Photovoltaic Generation: Fully satisfies the requirements for zero-carbon green electricity supply for household self-consumption(**), eliminating the need for high electricity costs.

5、Versatile Applications: Suitable for PV only, Grid only, PV + Grid, UPS, and PV + Generator configurations.

6、Simplified Installation: No complex wiring required.

7、Easy Maintenance,User-friendly Operation.

(*) The duration of operation may vary based on the home's power consumption.

(**) Performance is dependent on the photovoltaic input power.

Battery
  • Battery Type:LiFePO4
  • Capacity:8038Wh
AC Output
  • Output Topology:L+N+PE
  • Output Rating:3600VA
  • Rated Output Voltage:208-240V(Adjustable)
  • Waveform:Sine Wave
  • Frequency:50/60Hz
  • Overload Capacity:10s@110%~130%Load 3s@130%~150%Load
AC Input
  • Input Topology:L+N+PE
  • Input Voltage:176~264V
  • Input Frequency:40~70Hz
  • Max Input Current:20A(RMS)
PV Input
  • PV Max Input Power:5000W
  • PV Max Input Current:18A
  • PV Max Open Circuit Voltage:500VDC
  • MPPT Voltage Tracking Range:40~450VDC
  • MPPT Tracking Max Efficiency:99.5%
Others
  • Charging Temperature:0℃~55℃
  • Discharge Temperature:-20℃~55℃
  • Use Ambient Humidity:Max90%RH
  • Storage Ambient Temperature:-20℃~50℃(15~25℃ is best)
  • Battery Cycle Life:>11000 cycles(70% SOC)
  • Net Weight:About 80kg
  • Size:L*W*H:480*240*835 mm
PRODUCT DOCUMENT DOWNLOAD
Product Specification
Notice
* This product power supply can power your equipment in the temperature range of -20 to 55 degrees Celsius. If the operating temperature exceeds the above range, the product may not work
